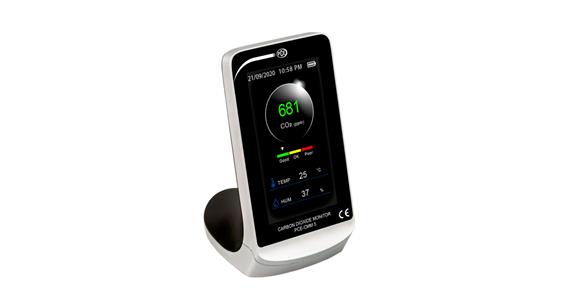

Aerosol measuring instrument PCE-CMM 5

Použití
Sensors for monitoring air quality are subject to different requirements to those in industrial or scientific and technical laboratory applications. Therefore the focus is on sensor properties such as long-term stability, low maintenance and low energy consumption. The aerosol measuring instrument satisfies these requirements with its NDIR sensor. The nondispersive infrared (NDIR) absorbent measurement enables precise measurements with long-term stability at an absolute measuring range up to 5,000 ppm.

Provedení

• Large CO2 measuring range up to 5,000 ppm

  • Maintenance-free NDIR CO2 sensor


  • Traffic light function for carbon dioxide


  • Measures temperature and humidity


  • 5 h graph for long-term monitoring


  • Cordless and mains operation


  • 4.3 inch graphic display


  • Date and time display
• CO2 measurement variable

  • Measuring range 400 to 5,000 ppm


  • Accuracy ±75 ppm or ±5 % of measured value (the larger value applies)


  • Resolution 1 ppm


  • CO2 sensor type NDIR sensor


  • Display 4.3 inch LCD display


  • Power supply 3.7 V Li-ion battery 3,000 mAh, 5 V micro-USB


  • Battery life approx. 6 h


  • Charging time approx. 2 h

Dodávka

• 1x aerosol measuring instrument PCE-CMM 5


• 1x operating instructions


• 1x charger
