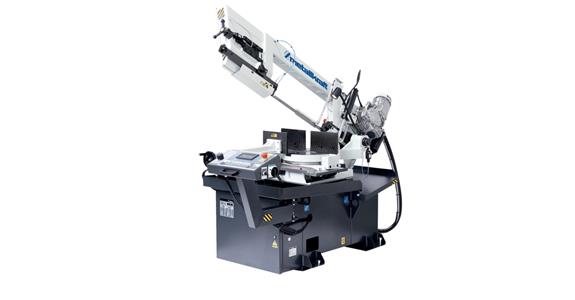

Hydraulic swivel frame metal band saw type BMBS 300x320 HA-DG

Katalogové č.: 1092862 101

Cena bez DPH:
Katalogová cena:

Ušetříte:

Objednáme pro Vás

Přidat do oblíbených

Množství

Minimální množství pro objednání: 1

Přidat do košíku

Popis

Použití
For sawing e.g. stainless steel, tool steel, hollow profiles and solid materials. Recommended cutting area for solid material (round) 0° 180 mm/45°R 110 mm/45°L 110 mm/60°R 80 mm.

Provedení

Semi-automatic metal bandsaw with hydraulically swivelling frame
For mitre cuts from +60° to -45°
With hydraulically controlled saw functions
Saw belt drive with low-maintenance, oil-lubricated
Worm gear
With a rugged three-phase motor 400 V/50 Hz, 2.4 kW,
With overload protection
With frequency converter: allows infinitely variable
Saw band speed can be set from 20-
100 m/min
- Saw arm inclined by 25°, thus longer
service life of the saw band
- With chip removal brush for keeping the saw band
perfectly clean and maintained
- Hydraulic vice with manual quick-action clamp
for side adjustment
- Limit switches control the upper and lower position
of the saw arm
- BRP - monitoring of saw band
- Ball bearing-mounted turntable
- With cut probe
