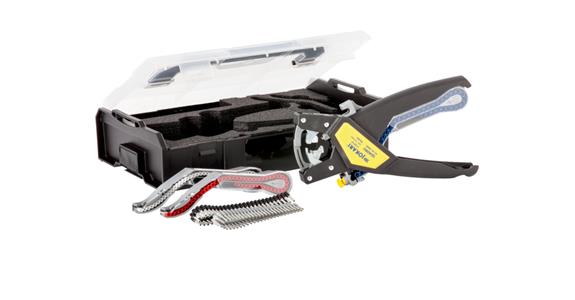

Kabelverarbeitungs-Set Quadro Plus Arbeitsbereich 0,5-2,5 mm2

Katalogové č.: 1062143 101

Cena bez DPH:
Katalogová cena:

Ušetříte:

Objednáme pro Vás

Přidat do oblíbených

Množství

Minimální množství pro objednání: 1

Přidat do košíku

Popis

Použití
Crimping wire end ferrules on strips from 0.5 to 2.5 mm2 (AWG 20-14) in accordance with VDE 0609 Part 1.
Suitable for wires with PVC insulation.
Applications in the electrical industry, electrical servicing and panel installation.

Provedení

Four functions for fast work:
Cutting, stripping, twisting, crimping
Integrated side cutters for wires up to 2.5 mm2
High force transmission enables very easy crimping of wire end ferrules
Precise longitudinal stop for uniform stripping
Twist system prevents the stranded wires from fraying to ensure reliable insertion of the conductor into the wire end ferrule
Rapid magazine change
Integrated force stop ensures a consistent, high-quality crimp
Force stop function triggers when the crimping punch reaches the end position

Výhoda

Exemplary integration of four functions in one stripping and crimping tool
The perfect balance of ergonomics and functionality
Saves considerable time and money when wiring switch cabinets
Strips can be reloaded in just a few seconds thanks to simple magazine change, for efficient working
No need to adjust to the conductor cross-section
