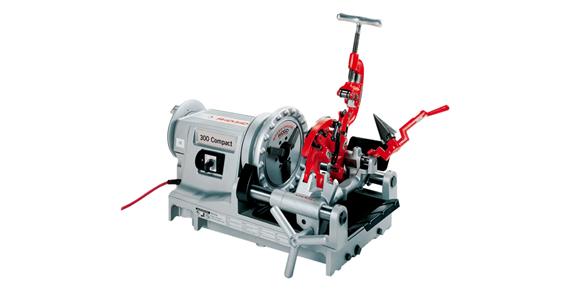

Thread cutting machine, 300 compact 1/8-2 inch

Provedení

• Quick-action chuck with replaceable profile jaws
• Cam-actuated centring device
• Self-oiling via the cutting head with integrated oil and chip pan
• Spindle speed 38 rpm
• Rotation switch with built-in foot switch
• Return/supply
• Motor 1.7 kW, 230 V, 25-60 Hz

Dodávka
BSPT cutting head 1/8-2 inches, opens automatically
BSPT Euro cutting jaws 1/2-3/4 inches and 1-2 inches
Pipe cutter 1/8-2 inches freely movable, self-centring with cutting wheel
Cutter 1/8-2 inches
Thread cutting agent 5 l

Poznámky
For suitable cutting jaws, see art. no. 1061651 101-102.
