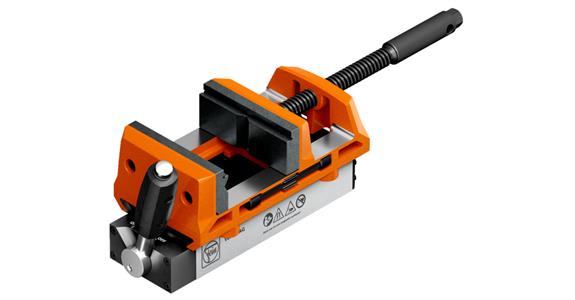

VersaMAG Magnet-Schraubstock 100 mm

Katalogové č.: 1053540 101

Cena bez DPH:
Katalogová cena:

Ušetříte:

Ihned k dodání

Přidat do oblíbených

Množství

Minimální množství pro objednání: 1

Přidat do košíku

Popis

Provedení

Compact yet powerful permanent magnet with vice for tool-free clamping of different components on magnetic surfaces.
Modular system: The unique modular system ensures a secure hold in very different working situations and can always be extended with relevant accessories.
Portable: for flexibility and quick use. Adapts to any workplace thanks to its compact design and extra-narrow permanent magnet. Optimises every workplace: Clean and safe working in a wide range of applications.
Thanks to innovative 2-rotor system up to 7,800 N retention force for secure clamping on all magnetic surfaces - even where thin sheet metal is used (from 4 mm thickness). Secure clamping of components for further processing with different power tools e.g. angle grinders, drill/drivers, saws, MULTIMASTER etc.
Clamping in tight spaces or vertical planes? No problem, thanks to compact construction and extra-narrow permanent magnet. Changeable clamping jaws in different heights for clamping larger materials such as sheet metal and pipes.
Precise alignment of the permanent magnet using 30 % pre-magnetisation.

Výhoda

Simple mounting using the lifting magnet function
Retention force of 7,800 N = 795 kg
No burdensome adjustment of T-sliding blocks
Universal placement on any magnetic substrate (welding table, T-beams etc.)
Safe working thanks to secure HOLDING of the workpieces

Dodávka
1x permanent magnet
1x mounting plate
1x vice
1x hex key 3 mm
1x lashing strap

Technická data

Značka: FEIN
Výška čelistí: 40 mm
Šířka čelistí: 100 mm
Min./max. šířka upnutí: 0-108 mm
Hmotnost: 7,25 kg
Přidržovací síla: 7800 N
Min. šířka upnutí: 0 mm
