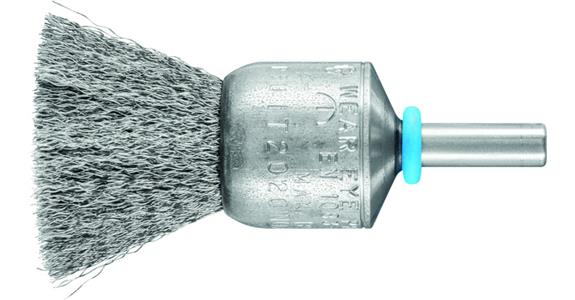

Brush INOX diameter 20 mm PBUIT 2022/6 INOX 0.20
Katalogové č.: 1047266 104
Cena bez DPH:
Katalogová cena:
Ušetříte:
K dodání: 2
Minimální množství pro objednání: 1
Popis
PoužitíSuitable for light brushing work such as deburring, cleaning and removing discolouration. In addition to brushes with stainless steel filament, PFERD also offers INOX-TOTAL brushes for machining stainless steel (INOX). These are especially suitable for use in highly critical areas.
Provedení- Machinable materials: Aluminium, bronze, stainless steel (INOX), highly heat-resistant materials, cobalt-based alloys, hard non-ferrous metals, nickel-based alloys (e.g. Inconell and Hasteloy), nickel- or titanium-based superalloys, titanium, titanium alloys, other non-ferrous metals, soft titanium alloys (tensile strength 500 N/mm²)
- Machining tasks: Removing discolouration, roughing, deburring, stripping paint, derusting, removing oxide layers, cleaning
- Drive types: Flexible shaft drives, drills, straight grinders
Výhoda- Maximum protection against corrosion as all components are produced from grade 1.4310 (V2A) stainless steel (INOX).
- The spreading action of the filament during rotation facilitates work in hard-to-reach places such as drilled holes and cavities
- Very good corrosion resistance
- Creates fine surfaces
- The brush degreases and leaves behind no oil residues on the workpiece
PoznámkyRecommendations for use: Please observe the recommended speed values.
Safety precautions: When clamping the brush, make sure that the shank is clamped as far into the mount as possible. This is especially important when using at high speeds. The minimum clamping length is 10 mm.
Technická data
Značka: PFERD
Průměr hlavy: 20 mm
Průměr stopky: 6 mm
Délka: 70 mm
Průměr drátu: 0,20 mm
Max. rychlost otáčení: 18000 ot/min
Materiál hran: Nerezová ocel
Konstrukce: Zvlněný
Typ: PBUIT 2022/6 INOX 0.20
Délka plnění: 25 mm
Max. doporučená rychlost otáčení: 11700 ot/min
Min. doporučená rychlost otáčení: 7200 ot/min
Min./max. doporučená rychlost otáčení: 7200-11700 U/min(rpm)
Obráběné materiály: Hliník | Bronz | Nerezová ocel | Neželezný kov | Titan | Titanová slitina
Další podrobnosti
Číslo výrobce:
43200037
EAN: 4007220808412
