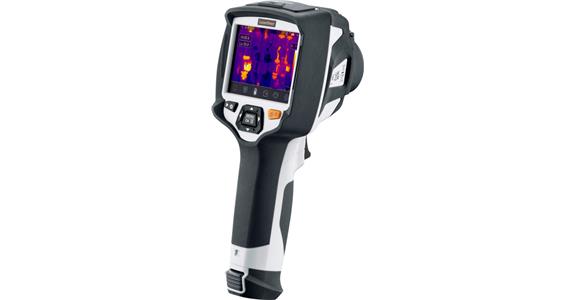

Wärmebildkamera ThermoCam. HighSense Pro

Použití
This thermal imaging camera has a high-resolution infrared sensor and allows detailed image analyses and optimal visualisation of the smallest temperature differences. Due to the large measuring range, the product has a range of applications, for example in construction, mechanical engineering and electrical engineering. Using the CustomApp function, the thermal imaging camera can also be configured quickly for a wide range of standard applications even with extensive parameter setups. The high thermal sensitivity allows thermal bridges and insulation errors in buildings to be detected, heating pipes to be analysed, overheating in components, cables and fuses to be localised and defective solar cells in PV modules to be determined.

Provedení

• Perfect for detailed image analyses and determining the smallest temperature differences thanks to high-resolution infrared microbolometer sensor
• Rechargeable CustomApps for fast pre-configuration for standard applications: Determining temperature extreme points, air leaks, visualisation of the temperature profile etc.
• Extensive functions: Measuring hot and cold areas, measuring at 3 points, in 3 ranges or horizontal/vertical lines
• Fast transfer of measurement data via USB-C interface to PC or via WiFi interface to iOS or Android smartphone
• Accuracy of infrared temperature: ±2 °C or 2 % of measured value
• HighSense infrared sensor resolution:
  160x120 pixels, adjustable focus 0.5-30 m, field of view 20.7° x 15.6°
  HighSense Pro infrared sensor resolution:
  384x288 pixels, adjustable focus 0.5-100 m, field of view 41.5° x 31.1°
• Functions: CustomApps, infrared image, digital image and mixed image, picture-in-picture, display with 8 and 4 special colour palettes, real-time analysis, measurement point, line, area, hot/cold point measurement

Výhoda

• High thermal sensitivity
• Optimal image quality thanks to precise automatic calibration and manual focus
• Freely available, high-quality radiometric Windows PC software for download, for documenting, further editing and evaluation of the data
• Freely available Laserliner HighSense app for documenting, editing and evaluation on iOS and Android smartphones
• Text notes can be easily inserted using editor

Dodávka
ThermoCamera HighSense/HighSense Pro
2x battery packs
Charging dock with mains charger and internat. adapters
USB cable
8 GB Micro SD card with adapter
Carrying case
