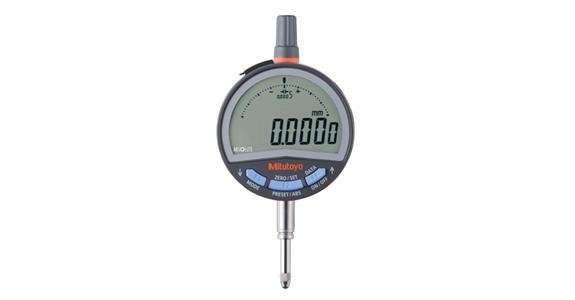

Digit. čís. úchylkoměr ID-C, měřicí rozsah 12,7 mm, čís. krok 0,001 mm, 1,5 N

Použití
For measuring lengths and length differences, e.g. concentricity, flatness and positional measurements.

Provedení

• For dynamic and static measurements
• ABSOLUTE system for setting the starting position once until the next battery change
• Large digital/analogue display for easy reading of values
• Ability to perform simple calculations and peak detection
• Integrated warning function for the calibration plan
• Display can be rotated 330° for flexible display settings
• Functions: Measurement frequency (MAX/MIN/RANGE) 50 times/sec, alarm (low voltage, setting error, sensor error, display overflow etc.), DATA/HOLD, Digimatic data output, Digimatic S1 bi-directional interface, ON/OFF, switchable analogue measuring range, function lock, GO/±NG evaluation, ABS/INC (INC ZERO), selectable analogue bar resolution, automatic shutdown, calculation function (with formula), user-defined keys, switchable counting direction, calibration warning function
• 1033018304-305 Additional functions: Selectable digit increments

Výhoda
Bi-directional communication via Digimatic S1 interface for PC parameterisation

Dodávka
1x battery
1x battery cover opener
1x spindle lifting handle (25.4 and 50.8 mm models)
Manufacturer test certificate

Poznámky
For connecting cables, see art. no. 1033200 610.
For replacement batteries, see art. no. 1039900 101.
