Digitale-Bügelmessschraube mit Zubehör 40 EWR-V

Použití
For measuring e.g. shaft diameters, external dimensions on workpieces etc. Universal adjustment to different workpiece and measurement situations using individually replaceable gauge slides.

Provedení

• High-contrast digital display
• Fully hardened and ground stainless steel measuring spindle
• Mounting holes for gauge slides with shaft diameter 3.5 mm
• QUICK DRIVE quick adjustment
• Non-rotating spindle
• Ratchet tool on the front
• Thermally insulated painted steel frame
• Features: RESET (sets the display to zero), ABS (display can be set to zero without losing the reference to the ORIGIN), mm/inch, ORIGIN (measurement presetting), LOCK function (key lock), TOL (input of tolerances and warning limits), HOLD (measured value storage), DATA (data transfer), bi-directional data interface (external querying and input of characteristic values as well as adjustment of individual function blocks via MarCom software)

Výhoda
MarCom Professional free download: www.mahr.com/marcom

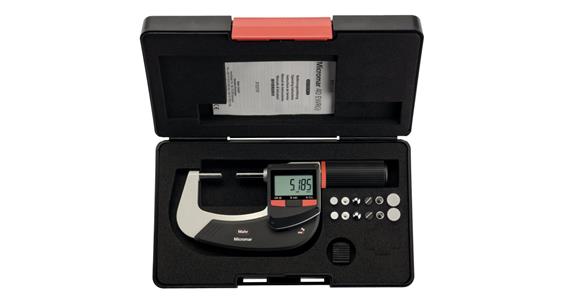

Dodávka
1x operating instructions
1x battery
1x case
1x pair 40 Ef flat gauge slides, dia. 6.5 mm
1x pair 40 Ea offset gauge slides, dia. 2 x 4 mm
1x pair 40 Et plate gauge slides, dia. 11.3 mm
1x pair 40 Eb spherical gauge slides, R=5 mm
1x pair 40 Ep ball gauge slides 60° dia. 0.3-5.5 mm
1x pair 40 Es gauge slides with blade 0.75 x 4 mm
