Stirnseitenmitnehmer CoAE, Grundkörper, MK4

Použití
For efficient turning and milling of workpieces along their entire length without re-clamping with the highest accuracy.
Can be used in clockwise and anti-clockwise rotation.

Provedení

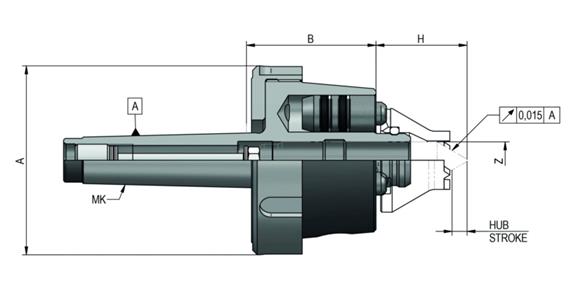

• Basic body with morse taper and hydraulic pressure compensation
• Clamping diameter 8-80 mm
• Max. workpiece weight 100 kg

Výhoda

• For turning and milling with single clamping
• Balancing carrier disc, radially play-free
• Maximum concentricity deviation 0.015 mm for maximum precision
• Robust and consistent workpiece longitudinal stop on the front side by means of spring-loaded centring point
• Maximum flexibility thanks to universal replacement of the carrier disc and centring point

Dodávka
- 1 piece CoAE clamping face driver basic body MK

Poznámky
- Other sizes on request
- With draw-off nut on request
